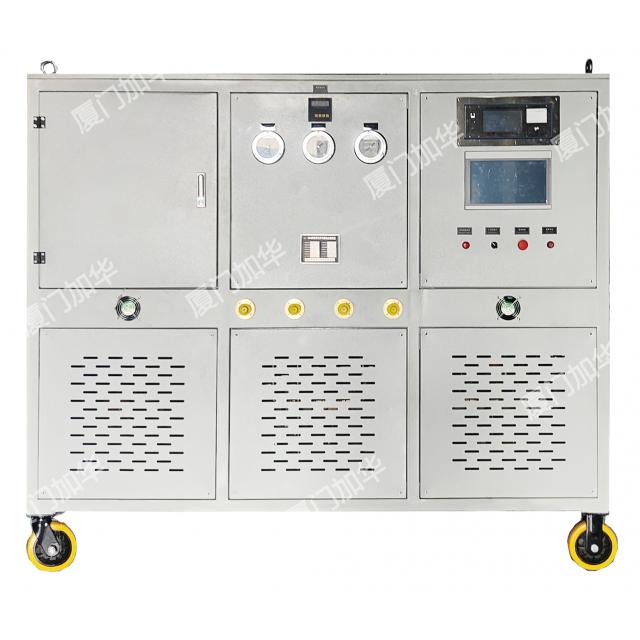

JHBQ10-HQ series SF6 mixed gas portable intelligent gas filling device

recommendation index：

Adopt high-precision mass flow controller

Automatically calculate the gas ratio parameters and automatically adjust the gas ratio

Adopt 7-inch color LCD touch screen, intelligent design

Real-time display of air chamber status and filling status

Used for various SF₆ mixed gas or environmentally friendly insulating gas electrical equipment air chamber volume measurement, total gas, charge/fill gas volume testing and intelligent fill gas
It is mainly composed of air circuit system, air chamber volume measurement system, intelligent air replenishment system, etc
Adopt high-precision mass flow controller; can set gas mixing ratio and pressure in one step

project	Specifications
Model		JHBQ10-HQ1	JHBQ10-HQ2	JHBQ10-HQ3		JHBQ10-HQ4
Mixing ratio detection	Measuring range	0～100%(mol/mol)
	precision	±0.5%(mol/mol)
	resolution	0.01%
	response time	< 20S
Qi replenishment	Supplemental gas concentration range	0～100%
	Optional fill gas	SF₆ & N₂	SF₆&CF₄	SF₆ & N₂ 、 SF₆ & CF₄	C₄F₇N&CO₂&N₂、 C₄F₇N&CO₂&O₂
	Air filling accuracy	±0.5%(mol/mol)
	make-up air flow	≤100L/min
	O₂ mixing amount (volume fraction)	Not higher than 0.05%
	air supply pressure	≤1.0 MPa
	air replenishment rate	1M³ air chamber replenishment 0.1MPa time ≤ 40min
